There's a question that's been rattling around in my head since I started covering AI tools two years ago: what happens when your model needs to make a decision faster than electricity can travel through a wire?
CERN just answered it. And their approach is the exact opposite of everything the AI industry is doing right now.
40,000 Exabytes and a 50-Nanosecond Deadline
Here's the setup. The Large Hadron Collider smashes protons together roughly every 25 nanoseconds. Each collision generates megabytes of raw sensor data. Do the math across all the detectors and beam crossings, and the LHC produces about 40,000 exabytes of raw data per year — roughly a quarter of the entire internet's volume.
Obviously, you can't store all of that. Nobody can. So CERN has to decide, in real time, which collision events are scientifically interesting and which get thrown away forever. The window for that decision? Under 50 nanoseconds at the first filtering stage. Not milliseconds. Not microseconds. Nanoseconds.
For context, a single inference call to GPT-4 takes around 500 milliseconds. CERN's system needs to be ten million times faster.
How CERN Burned an AI Model Into a Chip
The Level-1 Trigger system at CERN runs on approximately 1,000 FPGAs — field-programmable gate arrays, which are chips you can rewire for specific tasks. Instead of running a neural network as software on a GPU (the way every AI startup does it), CERN's team compiled their model directly into the logic gates of these chips.
The tool they use is called HLS4ML, and it's open source. It takes a model built in PyTorch or TensorFlow, translates it into synthesizable C++, and then compiles that C++ into an actual hardware description that gets flashed onto the FPGA. The model doesn't run on the chip. The model is the chip.
There's a critical design choice here that surprised me when I dug into the technical papers. A huge chunk of the FPGA's resources aren't allocated to neural network layers at all. Instead, they're used for precomputed lookup tables — essentially a massive dictionary of "if the input looks like X, the answer is Y." For the vast majority of standard particle signatures, the chip doesn't even do a calculation. It just looks up the answer.
AXOL1TL: The Algorithm Running at the Speed of Physics
The specific algorithm handling this first-pass filtering is called AXOL1TL (pronounced like the amphibian — physicists love their naming). It's an anomaly detection model that runs directly on the FPGA fabric, analyzing raw detector signals and flagging collision events that deviate from expected patterns.
The numbers are staggering:
- Only 0.02% of all collision events pass the Level-1 filter
- That means 99.98% of the data is discarded within nanoseconds — permanently

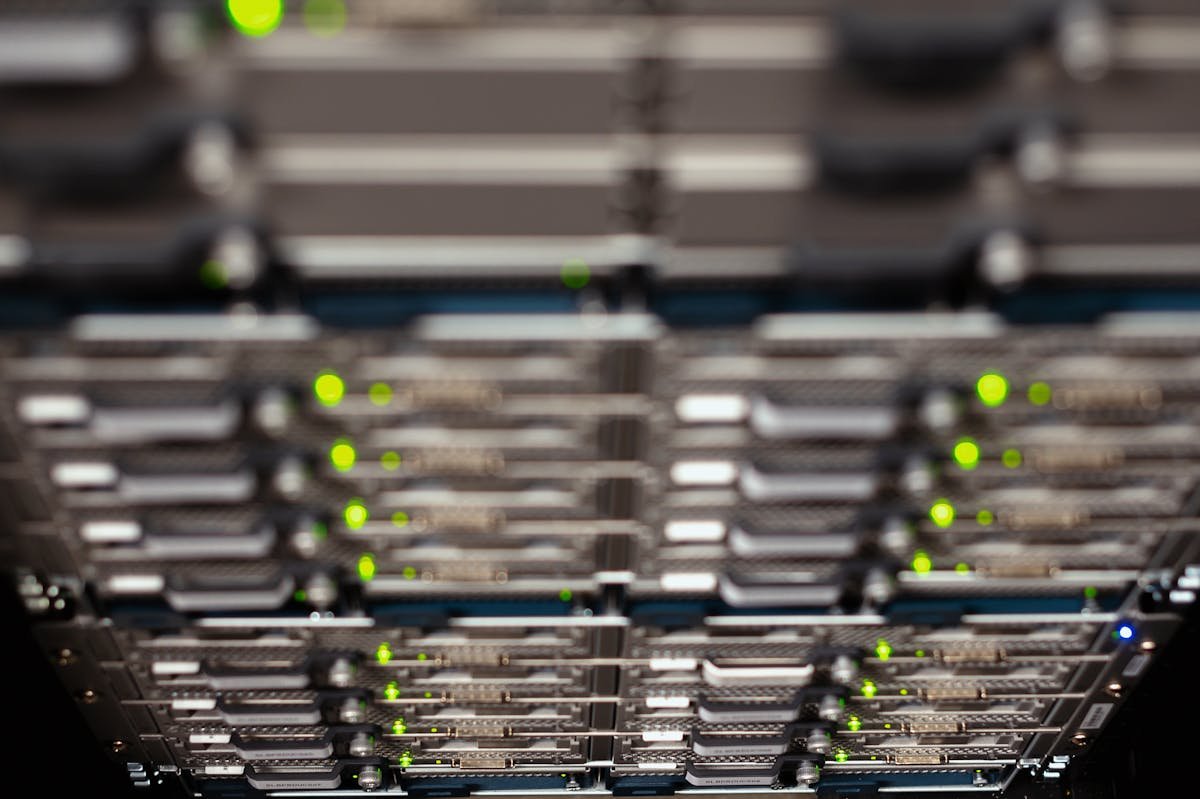

- The surviving events move to the High-Level Trigger: a farm of 25,600 CPUs and 400 GPUs that does deeper analysis
- Final output: roughly 1 petabyte of scientifically valuable data per day
My friend Derek, who worked on FPGA-based trading systems before switching to AI research, put it bluntly: "Wall Street thinks they're doing low-latency. CERN makes microsecond trading look like sending a letter by carrier pigeon."
Why This Matters Beyond Particle Physics
I could write another 500 words about Higgs bosons and quark-gluon plasma, but that's not why you're reading an AI blog. Here's why CERN's approach matters for the broader AI industry:
1. Tiny models can outperform massive ones — when you know the domain. The AI world is obsessed with scale. Bigger models, more parameters, more data. CERN went the opposite direction. Their trigger models are absurdly small by modern standards — small enough to fit on an FPGA alongside lookup tables. But they outperform any general-purpose model at this specific task because they're engineered for exactly one thing.
This has direct implications for enterprise AI deployment. If your use case is narrow enough — fraud detection, sensor anomaly flagging, real-time quality control — a tiny purpose-built model compiled to hardware might beat a cloud-hosted LLM by orders of magnitude in both speed and cost.
2. HLS4ML is open source and works today. This isn't theoretical. You can download HLS4ML from GitHub, train a small Keras or PyTorch model, and compile it to run on a Xilinx or Intel FPGA. The entry cost for an FPGA dev board is about $300. Compared to the $10,000+ for a decent GPU setup, that's remarkably accessible. Teams building edge AI security systems or industrial IoT should be paying attention.
3. The High-Luminosity LHC will push this even further. The HL-LHC upgrade, expected around 2031, will increase collision rates by a factor of 5-7x. CERN's already designing the next generation of trigger systems, which will need even more aggressive hardware-AI integration. The techniques they develop will filter down to commercial edge AI within 3-5 years — it always does. The internet itself started as a CERN project, after all.
What Enterprise AI Teams Should Take Away
I've spent the last year telling people that not every problem needs a 70-billion-parameter model. CERN is the ultimate proof of that statement. Their AI models are probably smaller than most JavaScript bundles I've seen, and they're making decisions that could lead to the next fundamental physics discovery.
The practical takeaway for anyone building AI systems:
- Profile your latency requirements honestly. If you need sub-millisecond response, cloud inference is off the table. Period.
- Look at HLS4ML if you're deploying to edge hardware. It's mature enough that CERN trusts it with their flagship experiment.
- Precomputed lookup tables are not cheating. They're an engineering optimization that CERN uses alongside neural networks. If 90% of your inputs map to known outputs, a lookup table is infinitely faster than inference.
- Model size is a design choice, not a quality metric. CERN's models are small because they need to be. Yours might be too, if you actually map out your constraints.
For teams evaluating edge hardware for FPGA deployment, our VPS setup guide on CloudHostReview covers affordable remote dev environments. And if you're looking at open-source coding tools to pair with your FPGA workflow, SoftwarePeeks has a solid roundup.
For teams evaluating edge hardware for FPGA deployment, our VPS setup guide on CloudHostReview covers affordable remote dev environments. And if you're looking at open-source coding tools to pair with your FPGA workflow, SoftwarePeeks has a solid roundup.
For teams evaluating edge hardware, our VPS setup guide on CloudHostReview covers affordable remote dev environments, and SoftwarePeeks reviews open-source coding tools for your FPGA workflow.
The next time someone tells you that AI requires massive GPU clusters and billions of parameters, point them at CERN. They're running AI on silicon chips the size of a postage stamp, filtering data at the speed of light, and they published the code for free.
If you're exploring how local model inference fits into your stack, CERN's work is a reminder that the best model for the job is often the smallest one that solves the problem.
